Quick Details

  • Place of Origin: Henan, China (Mainland)
  • Brand Name: HT
  • Model Number: Granular ferric oxide
  • Product name: Granular ferric oxide
  • Color: brown yellow
  • Shape: columnar
  • Size: Dia. 4-12 mm
  • Length: 5-15 mm
  • Feature: H2S removal
  • Main content: Fe2O3
  • Moisture: 5%
  • Hardness: 90% min

Packaging & Delivery

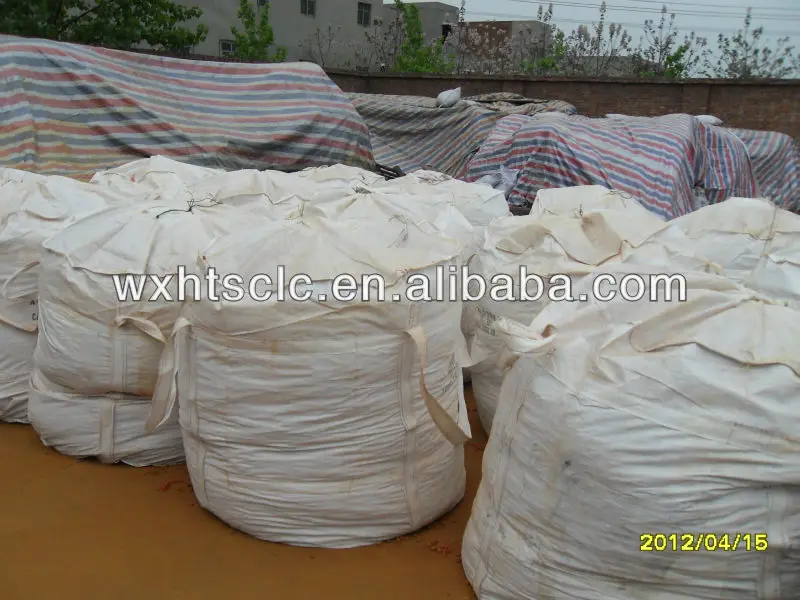

Packaging Details each 25kg into plastic woven bag/ton bags
Delivery Time Shipped in 5 days after payment

HT supply Granular Ferric Oxide use for remove H2S and phosphate

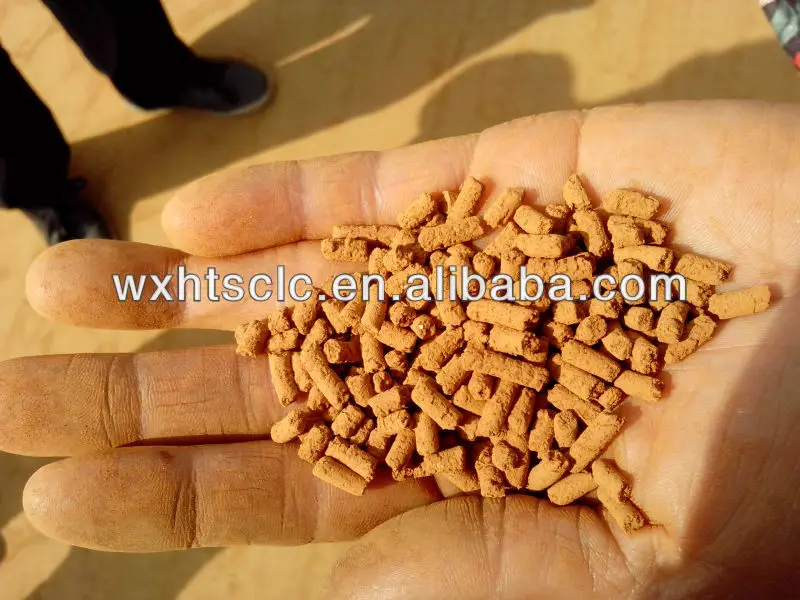

Granular ferric oxide Appearance: Brown yellow, a class of microlltic carbon
Granular ferric oxide Raw Material: Iron, manganese salt and other oxide

Granular ferric oxide Specification:

Model

HT201

HT202

HT203

appearance

claybank columnars

claybank columnars

claybank columnars

Size(mm)

4.5-5.5

6-8mm

8-12mm

Length(mm)

5-15

5-15

5-15

intensity

≥45

≥42

≥35

Bulk density(kg/L)

0.72-0.80

0.75-0.80

0.75-0.85

sulfur capacity

≥40%

≥35%

≥30%

Desulfurization

precision ppm

≤0.1

≤0.5

≤1.0



Advantages of Granular ferric oxide:

1. H2S removal through dry method in room temperature, renewable material
2. Quick reaction: Space velocity: 1000~3000h-1, penetration space velocity: 6000h-1, twice to four-time of normal iron oxide
3. Large sulfur degree, high purification degree, reaching 25% in the condition of space velocity 1000h-1, normal pressure, water saturation, import H2S 1%, export H2S≤5×10-8 particle
4. High strength, good water tolerance, no pulverization under the condition of boiling by 2 hours or soaking by 30 days, and the strength remain the same as before, even in the condition of sudden pressurizing or relief with 12MPa, and undergoing blow test 100 times
5. Large applicable scope, 10~100°C without obvious change of sulfur content
6. In the condition of no O2 or large COcontent conditions, the sulfur content won't alter



Desulfuration and Renewal Principles of Granular ferric oxide:
Desulfuration Reaction: Fe2O3.H2O+3H2S=Fe2S3.H2O+3H2O
Renewal Reaction: 2Fe2S3.H2O+3O2=2Fe2O3.H2O+6S (strong exothermic reaction)

Note: The desulfuration renewal can be cyclic regeneration when there is Oor O2/H2S≥2.5 in the air, and the reaction formula combines into 2H2S+O2=H2O+2S with the iron oxide as the catalyst.

Granular ferric oxide Application:
It can be used as raw materials or hydrothion removal in the fields of chemical fertilizer, chemical industry, petrochemical industry and coal chemical industry, as well as dry removal H2S in natural gas, water gas, semi-water gas, carbon gas, transformative gas, coke-oven gas, methane, CO2and sulfurous gas in city gas. It can be also applied to desulfurizer for organic sulfur.

Granular ferric oxide Proposed Application Direction:
Content: H2S≤15mg/Nm3, space velocity: 1000~3000h-1
Temperature: 0~100°C
Pressure: normal pressure to 10MPa
Humidity: relative humidity 20~100%, water content in bed is strictly prohibited



Granular ferric oxide Package and Storage:
25kg into a plastic woven bag with PE inner. No mix-storage with other filter materials.
